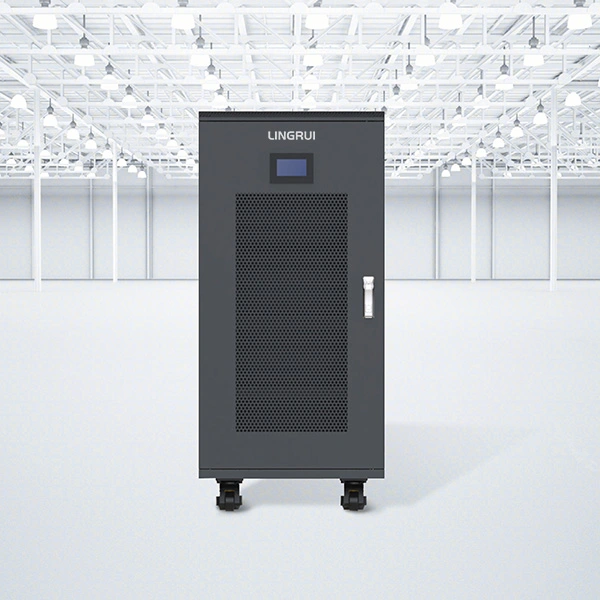

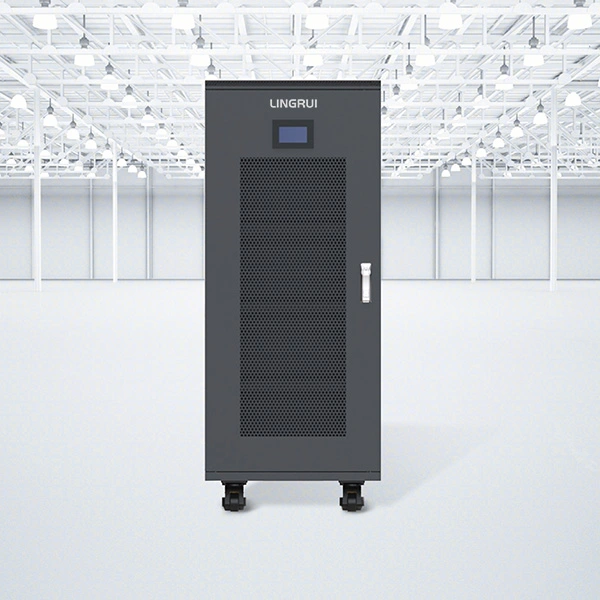

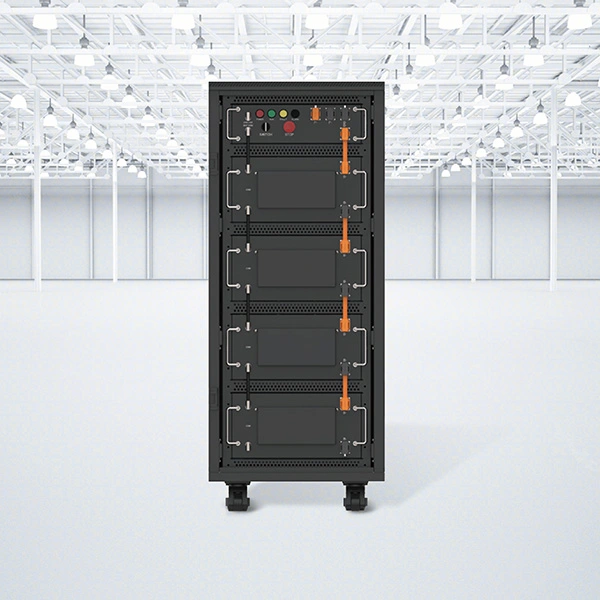

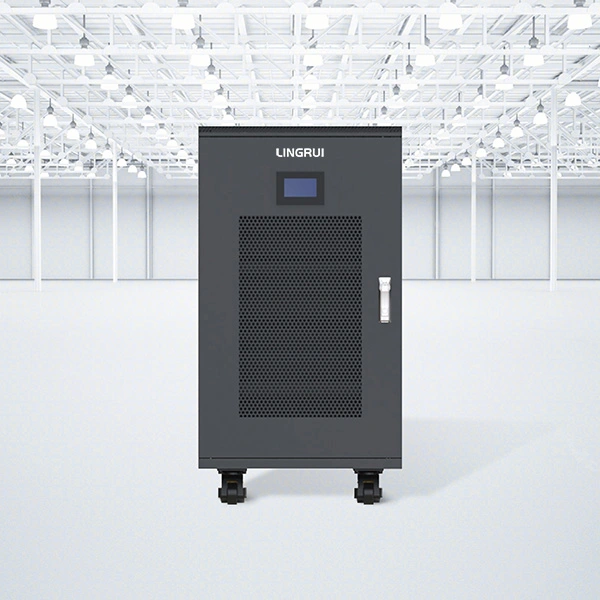

204.8V High Voltage LiFePO4 Battery Energy Storage System

Brand: LINGRUI Delivery Date: 5-10 days Place of Origin: CHINA CHINA Transport To: Whole WorldFeature:
Contact sales
Model No
Module Model
    Battery Type
      Rated Voltage
        Rated Capacity
          Rated Energy
            Cycle Times
              Display Screen
                Cabinet Size
                  Total Weight
                    Model No
                    Module Model
                      Battery Type
                        Rated Voltage
                          Rated Capacity
                            Rated Energy
                              Cycle Times
                                Display Screen
                                  Cabinet Size
                                    Total Weight
                                      LHV-204-5051.2V 50AhLiFePO4204.8V50Ah10.24KWh≥6000 Cycles @80%DOD,0.5C/0.5C,25℃LCD Touch Screen600*600*1109mm205kg
                                      LHV-204-8051.2V 80AhLiFePO4204.8V80Ah16.37KWh≥6000 Cycles @80%DOD,0.5C/0.5C,25℃LCD Touch Screen600*600*1287mm255kg
                                      LHV-204-10551.2V 105AhLiFePO4204.8V105Ah21.5KWh≥6000 Cycles @80%DOD,0.5C/0.5C,25℃LCD Touch Screen600*600*1287mm275kg
                                      LHV-204-16051.2V 160AhLiFePO4204.8V160Ah32.76KWh≥6000 Cycles @80%DOD,0.5C/0.5C,25℃LCD Touch Screen600*600*1465mm385kg
                                      LHV-204-23051.2V 230AhLiFePO4204.8V230Ah47.1KWh≥6000 Cycles @80%DOD,0.5C/0.5C,25℃LCD Touch Screen600*660*1643mm465kg
                                      LHV-204-28051.2V 280AhLiFePO4204.8V280Ah57.34KWh≥6000 Cycles @80%DOD,0.5C/0.5C,25℃LCD Touch Screen600*800*1643mm565kg

                                      Why choose
                                      high voltage energy storage?

                                      Taking the field of solar lithium storage systems as an instance, picture that when an 10kW hybrid solar inverter is utilized with a lithium battery as a low-voltage storage system, the DC voltage of the battery for house solar applications is commonly 48V or 51.2 V. Even if we utilize a relatively large nominal present, claim 200A, the optimal power that the battery can provide is 10kW (51.2 V x 200A = 10.24 kW), a value that does not meet the optimal result power of the inverter.

                                      On top of that, there are lots of commercial power storage applications with power system results of 30kW, 60kW, 100kW or even 500kW power ability. In these application scenarios, we need to utilize high-voltage lithium battery systems to lower the discharge existing.

                                      High Voltage Advantage

                                      • Higher Conversion Efficiency
                                      • Increased Independence from the Grid
                                      • Provides Greater Flexibility
                                      • Lower Cost, Larger System
                                      • Faster Charging and Discharging
                                      • Better Suited for Peaking Applications
                                      • Can Save Energy
                                      • Lifespan

                                        25 Years

                                      • Stacking

                                        3-7 Module

                                      • 80% DOD

                                        ≥7000 Cycle

                                      • High Power

                                        204.8-512V
