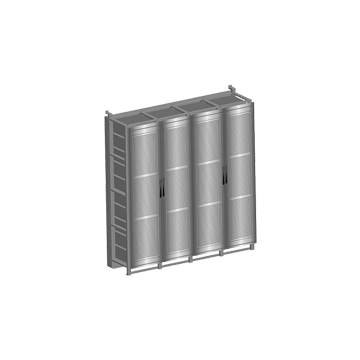

High Voltage LFP Array ESS

High Voltage LiFePO4 Battery Array Energy Storage Solution

Brand: LINGRUI Delivery Date: 5-10 days Place of Origin: CHINA CHINA Transport To: Whole WorldFeature: High voltage LFP battery array storage is a 1500V DC voltage level system, which can be integrated with 1MW / plus power converter system.
Contact sales

Product Description

High voltage LFP battery array storage is a 1500V DC voltage level system, which can be integrated with 1MW / plus power converter system.

Product Parameters

ProjectSpecificationRemark
Single cluster capacity334 kWh
Rated output334 kW
Rated output voltageDC1228 V
Output voltage rangeDC960 V~1401 V
Rated charge-discharge current272 A
Communication interfaceCAN/RS485
Cycle life4000 times@80%DODEOL 80%
Self-dischargeMonthly self-discharge<3%@25%SOC 25℃
Working temperature10℃~35℃Operating temperature of battery cluster system
-30℃~45℃Container packaging environmenttemperature
Storage temperature-30℃~60℃
Working relative humidity0~95%No condensation
Storage relative humidity0~95%No condensation
Charge-discharge efficiency98%
The altitude≤2000 m
System noise<65 dB
Protection levelsIP20Cell clusters
IP54Container packaging
Pollution levelsII level
External communication interfaceCAN/RS485ModbusRTU

Product Features

  • Modular design, flexible configuration ability;

  • The integration container can be installed and deployed quickly;

  • The actual project of product experience.




Product Application

Frequency regulation, peak shaving, backup power supply, black start, emergency power supply, reactive support, renewable energy integrated.
