48V 10kWh 15kWh,20kWh,30kWh LiFePO4 Battery Energy Storage System with 6KW Solar Inverter

Brand: LINGRUI Delivery Date: 5-10 days Place of Origin: CHINA CHINA Transport To: Whole WorldFeature: Self-consumption,Flexible Use clean economy solar energy for 24 hours, easy installation provide 10 years warranty.Real-time monitoring,can remote the system operation status from anywhere.
Contact sales
Model No
Energy Capacity
  • 10.24KWH
  • 15.36KWH
  • 20.48KWH
  • 30.72KWH
  • 7.68KWH
Rated Voltage
  • 51.2V DC
Rated Current
  • 200Ah
  • 300Ah
  • 400Ah
  • 600Ah
  • 150Ah
Protection
  • BMS Breaker
Charge Voltage
  • 56 V
Inner Resistance
  • < 20mΩ
Dimension (mm)
  • 621*214*1200
  • 621*214*1750
  • 621*214*2300
  • 621*214*550
Weight
  • 90kg
  • 135kg
  • 170kg
  • 250kg
  • 55kg
Communication Protocol
  • RS232,MODBUS
    SNMP,GPRS,WI-FI
Model No
Energy Capacity
  • 10.24KWH
  • 15.36KWH
  • 20.48KWH
  • 30.72KWH
  • 7.68KWH
Rated Voltage
  • 51.2V DC
Rated Current
  • 200Ah
  • 300Ah
  • 400Ah
  • 600Ah
  • 150Ah
Protection
  • BMS Breaker
Charge Voltage
  • 56 V
Inner Resistance
  • < 20mΩ
Dimension (mm)
  • 621*214*1200
  • 621*214*1750
  • 621*214*2300
  • 621*214*550
Weight
  • 90kg
  • 135kg
  • 170kg
  • 250kg
  • 55kg
Communication Protocol
  • RS232,MODBUS
    SNMP,GPRS,WI-FI
LESS-7.57.68KWH51.2V DC150AhBMS Breaker56 V< 20mΩ621*214*55055kgRS232,MODBUS
SNMP,GPRS,WI-FI
LESS-1010.24KWH51.2V DC200AhBMS Breaker56 V< 20mΩ621*214*120090kgRS232,MODBUS
SNMP,GPRS,WI-FI
LESS-1515.36KWH51.2V DC300AhBMS Breaker56 V< 20mΩ621*214*1750135kgRS232,MODBUS
SNMP,GPRS,WI-FI
LESS-2020.48KWH51.2V DC400AhBMS Breaker56 V< 20mΩ621*214*1750170kgRS232,MODBUS
SNMP,GPRS,WI-FI
LESS-3030.72KWH51.2V DC600AhBMS Breaker56 V< 20mΩ621*214*2300250kgRS232,MODBUS
SNMP,GPRS,WI-FI

Product Features

  • Highly integrated, plug and play
  • The appearance is simple and fashionable
  • The thickness of the product is small, and the installation area is small
  • Hidden wiring method, the appearance is more tidy, avoiding the risk of subsequent electric shock
  • The battery power is 10-60KWH, which can be increased or decreased according to the actual needs of customers (single battery 10KWH)


Product Introduction



Our Services

  • OEM and ODM service is acceptable.
  • All products will be tested 100% before shipment to ensure that the product does not have any quality problems.
  • We guarantee that warranty is 10 Years after delivery.
  • we accept sample order to test and check quality.

Why choose
LINGRUI LESS SERIES

LINGRUI LESS SERIES combines a inverter with a 51.2V lithium ion battery bank, which reduces the intermediate process of pairing the energy storage battery with the inverter, making it faster and more convenient to use.

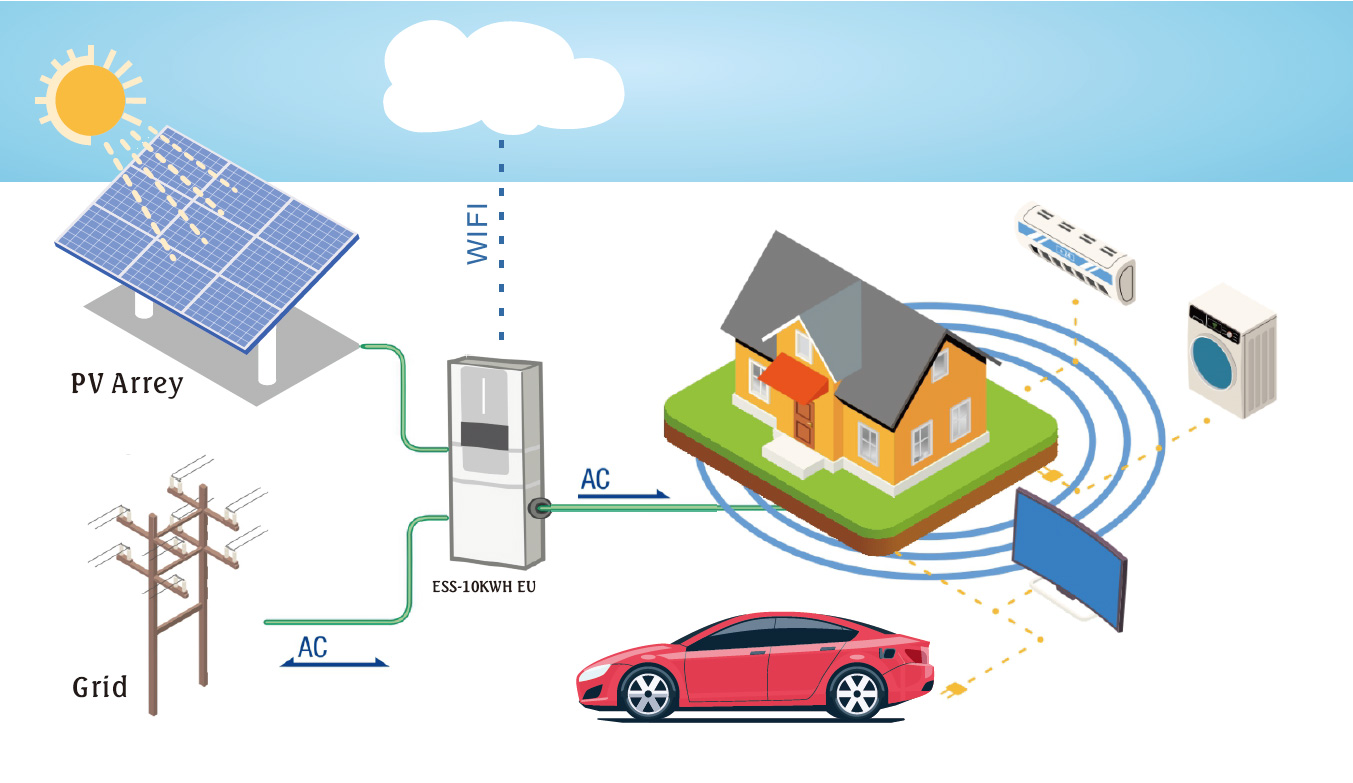

This energy storage system can provide power to connected loads by utilizing PV power, utility power and battery power and store surplus energy generated from PV solar modules for use when needed. When the sun has set, energy demand is high, or there is a black-out, you can use the energy stored in this system to meet your energy needs at no extra cost. In addition, this energy storage system helps you pursue the goal of energy self-consumption and ultimately energy-independence.

LESS SERIES Advantage

  • Self-consumption and Feed-back to the Grid
  • Programmable supply priority for PV, battery or Grid
  • User-adjustable battery charging current
  • Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
  • Built-in timer for various mode of on/off operation
  • Monitoring software for real-time status display and control.
  • Enhance AC / Solar charger to 60A.

  • Lifespan

    20 Years

  • With Inverter

    Yes

  • 80% DOD

    ≥7000 Cycle

  • Energy capacity

    7.5kWh-30kWh
