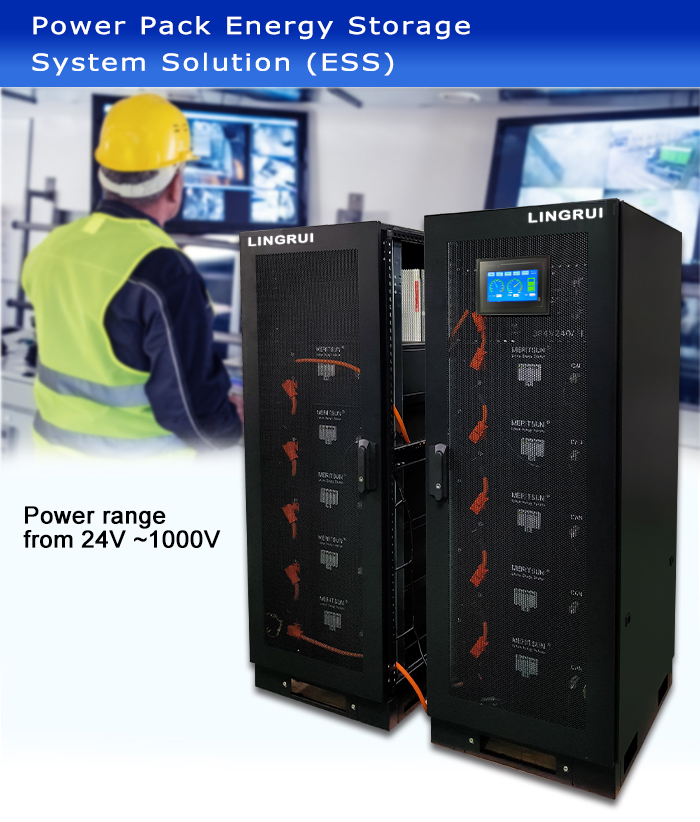

48V LiFePO4 Power Pack Energy Storage Systems (ESS)

Brand: LINGRUI Delivery Date: 5-10 days Place of Origin: CHINA CHINA Transport To: Whole WorldFeature: Multiple communication protocals: RS485,RS232,CAN,SNMP V3 available. Unlimited units parallel supported.
Contact sales
Model No
Product Type
  • LiFePO4
Rated Capacity
  • 15Ah
  • 18Ah
  • 25Ah
  • 50Ah
  • 100Ah
  • 200Ah
  • 20Ah
  • 150Ah
Rated Voltage
  • 51.2V
Cycle Life
  • >5000 Times
Dimensions
  • 260*165*210mm
  • 260*168*213mm
  • 330*172*220mm
  • 442*410*140mm or customized
  • 483*459*175mm or customized
  • 483*459*310mm or customized
Weight
  • 9 Kgs
  • 10.5 Kgs
  • 13.8 Kgs
  • 29 Kgs
  • 45 Kgs
  • 79 Kgs
Warranty
  • 5 years
  • 10 years
Certification
  • CE/RoHS/MSDS/UN38.3/ISO
Model No
Product Type
  • LiFePO4
Rated Capacity
  • 15Ah
  • 18Ah
  • 25Ah
  • 50Ah
  • 100Ah
  • 200Ah
  • 20Ah
  • 150Ah
Rated Voltage
  • 51.2V
Cycle Life
  • >5000 Times
Dimensions
  • 260*165*210mm
  • 260*168*213mm
  • 330*172*220mm
  • 442*410*140mm or customized
  • 483*459*175mm or customized
  • 483*459*310mm or customized
Weight
  • 9 Kgs
  • 10.5 Kgs
  • 13.8 Kgs
  • 29 Kgs
  • 45 Kgs
  • 79 Kgs
Warranty
  • 5 years
  • 10 years
Certification
  • CE/RoHS/MSDS/UN38.3/ISO
48V 15ahLiFePO415Ah51.2V>5000 Times260*165*210mm9 Kgs5 yearsCE/RoHS/MSDS/UN38.3/ISO
48V 18ahLiFePO418Ah51.2V>5000 Times260*168*213mm10.5 Kgs5 yearsCE/RoHS/MSDS/UN38.3/ISO
48V 20ahLiFePO420Ah51.2V>5000 Times330*172*220mm10.5 Kgs5 yearsCE/RoHS/MSDS/UN38.3/ISO
48V 25ahLiFePO425Ah51.2V>5000 Times330*172*220mm13.8 Kgs5 yearsCE/RoHS/MSDS/UN38.3/ISO
48V 50ahLiFePO450Ah51.2V>5000 Times442*410*140mm or customized29 Kgs10 yearsCE/RoHS/MSDS/UN38.3/ISO
48V 100ahLiFePO4100Ah51.2V>5000 Times483*459*175mm or customized45 Kgs10 yearsCE/RoHS/MSDS/UN38.3/ISO
48V 150ahLiFePO4150Ah51.2V>5000 Times483*459*175mm or customized45 Kgs10 yearsCE/RoHS/MSDS/UN38.3/ISO
48V 200ahLiFePO4200Ah51.2V>5000 Times483*459*310mm or customized79 Kgs10 yearsCE/RoHS/MSDS/UN38.3/ISO

Product Overview

Energy Storage System (ESS) technology is able to meet various needs of the users and provides customized solutions for the various purposes of the electric power market. Our Energy Storage System (ESS) provides not only economy but also strong reliability through its long-lasting life, safety and excellent performance.

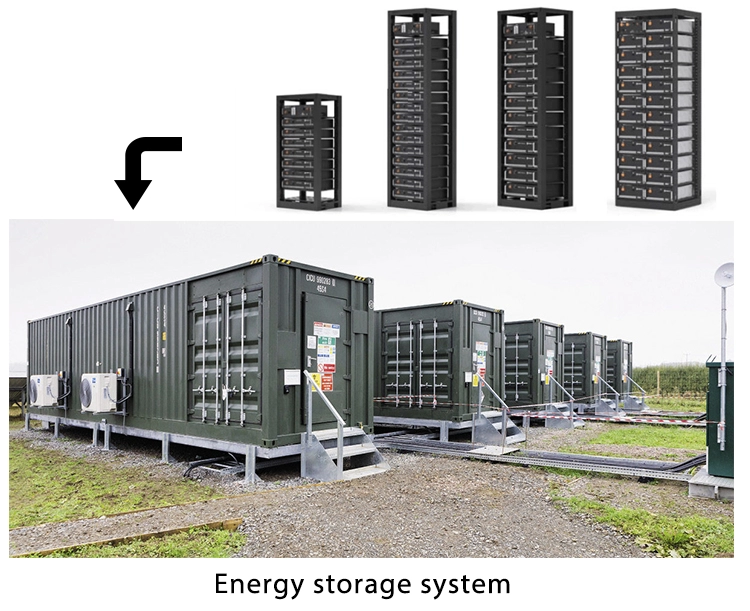

The ESS capacity from kWh to MWh, Lingrui supplies various of Energy Storage System (ESS) Solution,which widely use for residential, utility, commercial, UPS and base transceiver station - applicable to your life everyday, leading the green energy industry.



Product Features

  • Longer Cycle Life > 6000 cycles@1C 80%DOD
  • Standard Size: With 51.2V lithium battery module standard size or customized size
  • Communicate function with multiple communication protocals: RS485,RS232,CAN,SNMP V3 available.
  • Unlimited units parallel supported.
  • Smart BMS technologies, with over charging & over discharging protect function Short-circuit protection function Temperature protection function
  • Cell Balance function
  • Abnoramal ararm function
  • GPS security(optional)
  • Higher safety performance
  • Accept customized 3U 4U 5U battery module
  • Power range from 24V to 1000V
  • Accept customized size & capacity.
  • Accept customied with LCD & bluetooth.

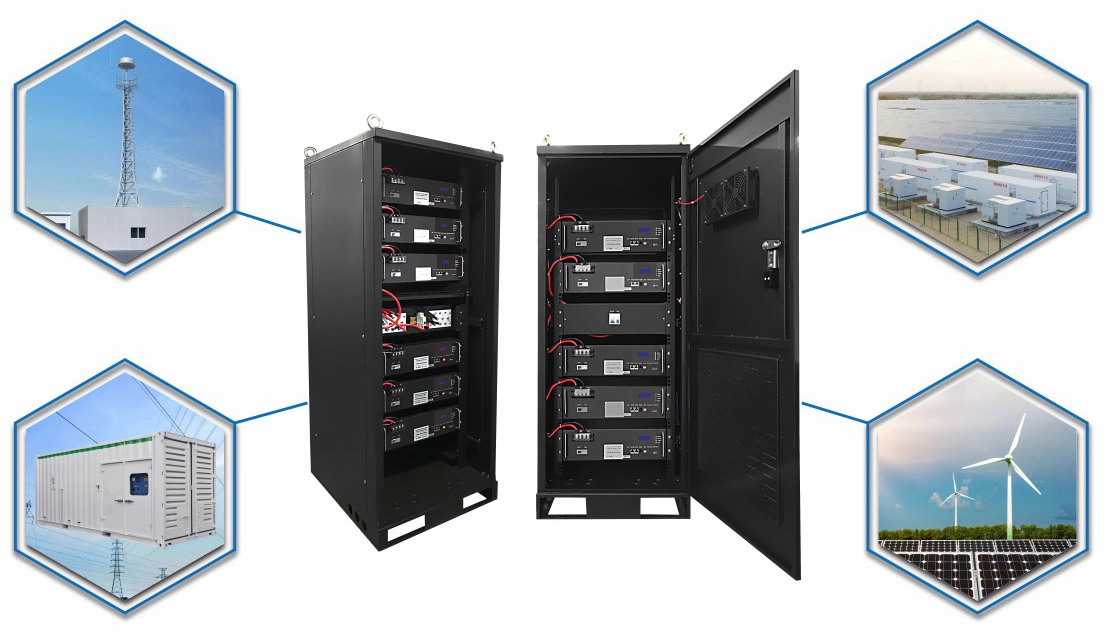

Battery Application

  • UPS System.
  • Utility Grid
  • Commercial Industrial
  • Solar Energy
  • Telecom Base Station
  • Data Center
  • Residential/home energy storage system


Our Services

  • OEM and ODM service is acceptable.
  • All products will be tested 100% before shipment to ensure that the product does not have any quality problems.
  • We guarantee that warranty is 5 years after delivery.
  • we accept sample order to test and check quality.
