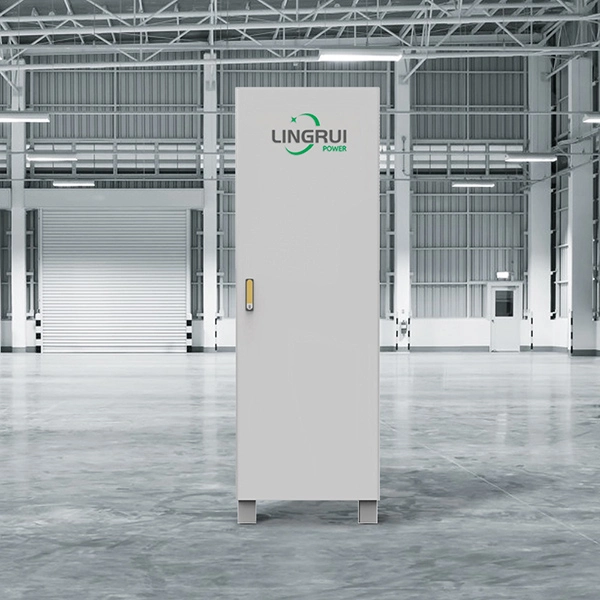

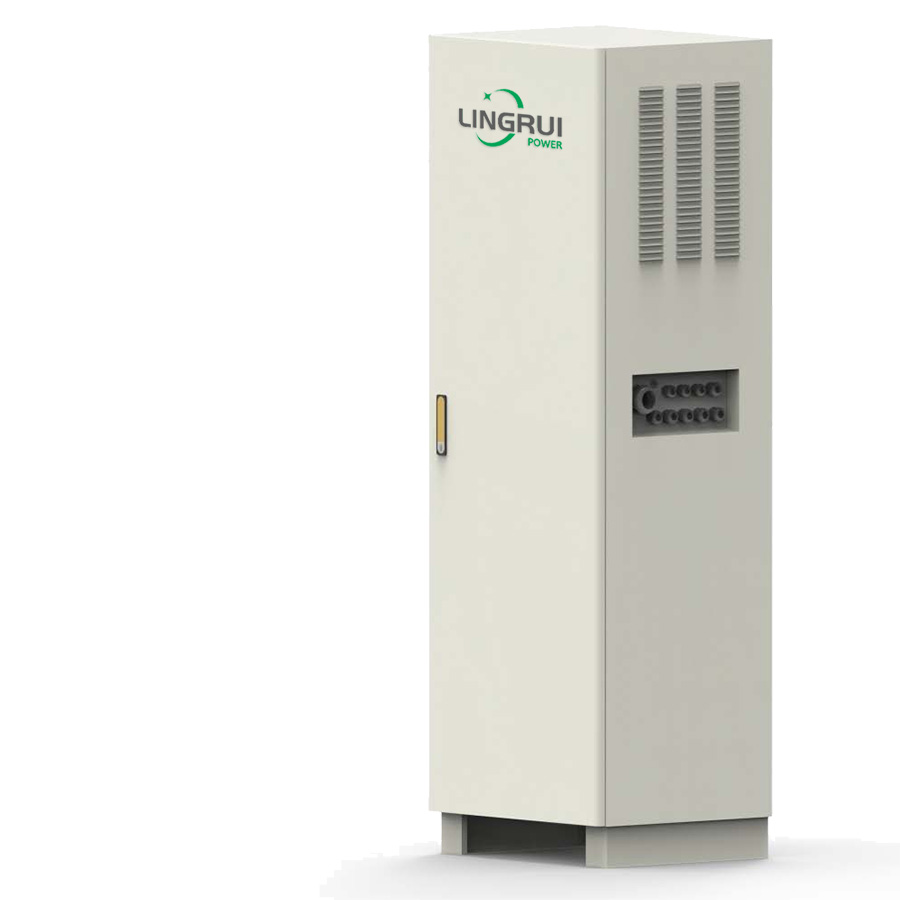

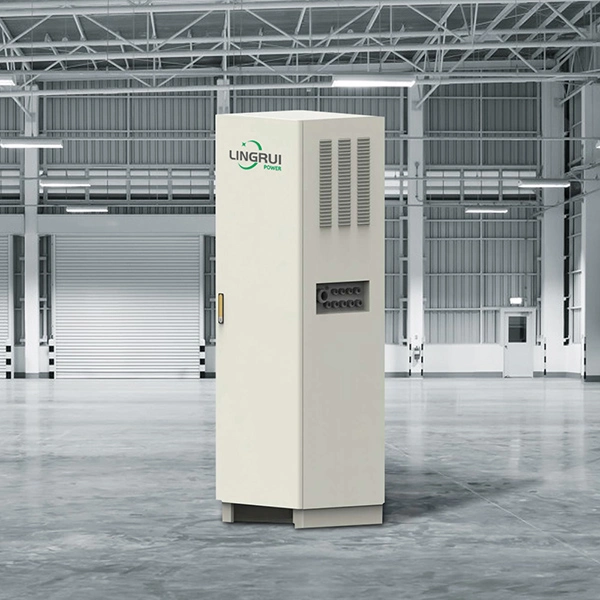

8KW 20kWh Residential ESS Lifepo4 Battery Storage System

Brand: LINGRUI Delivery Date: 5-10 days Place of Origin: CHINA CHINA Transport To: Whole WorldFeature: Self-consumption,Flexible Use clean economy solar energy for 24 hours, easy installation provide 10 years warranty.Real-time monitoring,can remote the system operation status from anywhere.
Contact sales
Model No
Energy
  • 20.48KWH
Nominal Voltage
  • 51.2V
Typical Capacity
  • 400Ah
Protection
  • BMS Breaker
Ground protection
  • YES
AFCI protection
  • YES
Islanding protection
  • YES
DC disconnect detection
  • YES
IP rank
  • IP54

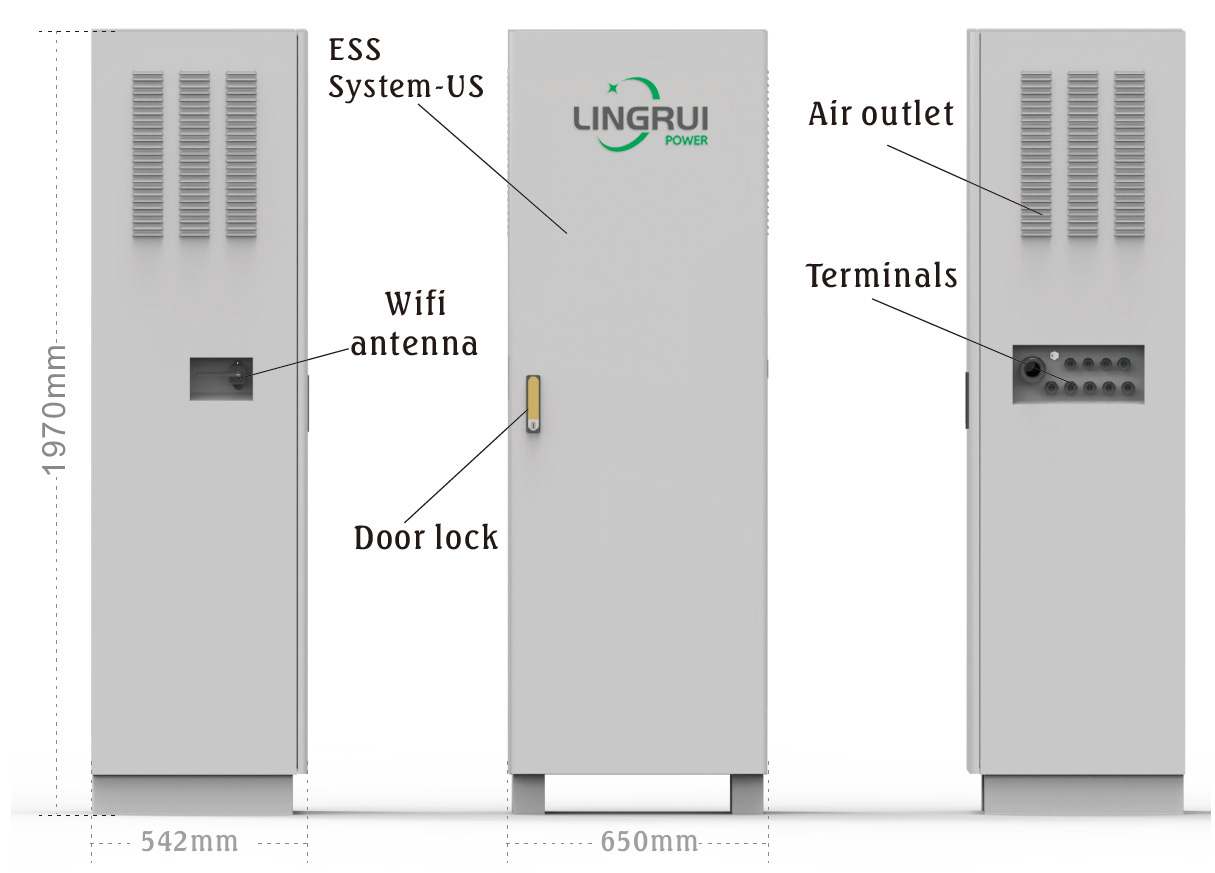

Dimension (mm)
  • 650*542*1970
Weight
  • 340kg
Model No
Energy
  • 20.48KWH
Nominal Voltage
  • 51.2V
Typical Capacity
  • 400Ah
Protection
  • BMS Breaker
Ground protection
  • YES
AFCI protection
  • YES
Islanding protection
  • YES
DC disconnect detection
  • YES
IP rank
  • IP54
Dimension (mm)
  • 650*542*1970
Weight
  • 340kg
ESS System-US20.48KWH51.2V400AhBMS BreakerYESYESYESYESIP54650*542*1970340kg

Product Features

  • Pure sine wave output.
  • Self-consumption and Feed-back to the Grid.
  • Programmable supply priority for PV, battery or Grid.
  • User-adjustable battery charging current.
  • Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup.
  • Built-in timer for various mode of on/off operation.
  • Multiple communication for USB and Wi-Fi.
  • Monitoring software for real-time status display and control.
  • Enhance AC / Solar charger to 190A.
  • Scalable Li-Ion battery expansion.
  • Li-Ion battery life cycle: 6000 cycles at 25°C.
  • High surge discharging current up to 2C.
  • IP Rank: IP 54.

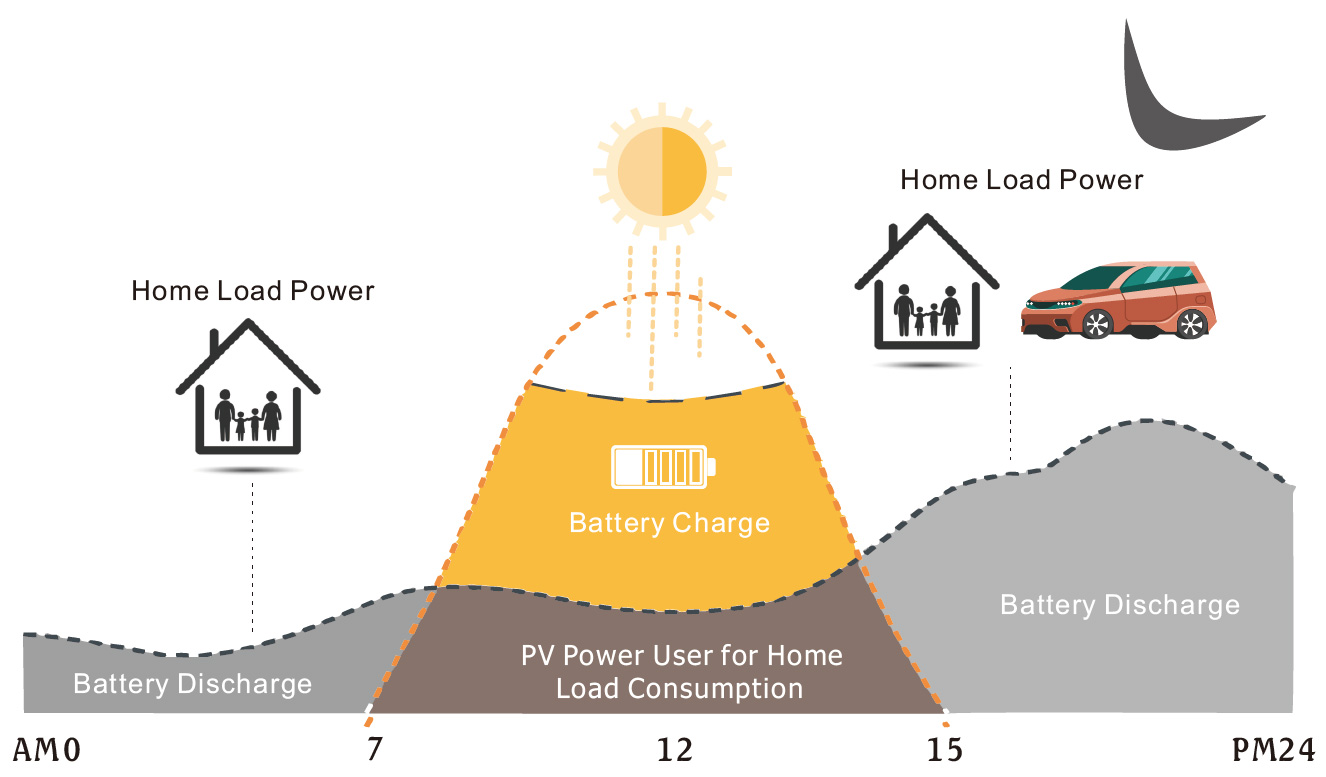

Working Mode



Our Services

  • OEM and ODM service is acceptable.
  • All products will be tested 100% before shipment to ensure that the product does not have any quality problems.
  • We guarantee that warranty is 10 Years after delivery.
  • we accept sample order to test and check quality.

Why choose
LESS-US-20

This energy storage system can provide power to connected loads by utilizing PV power, utility power and battery power and store surplus energy generated from PV solar modules for use when needed. When the sun has set, energy demand is high, or there is a black-out, you can use the energy stored in this system to meet your energy needs at no extra cost.

In addition, this energy storage system helps you pursue the goal of energy self-consumption and ultimately energy-independence. Depending on different power situations, this energy storage system is designed to generate continuous power from PV solar modules (solar panels), battery, and the utility.

LESS-US-20 Advantage

  • Self-consumption and Feed-back to the Grid
  • Programmable supply priority for PV, battery or Grid
  • Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
  • Built-in timer for various mode of on/off operation
  • Multiple communication for USB and Wi-Fi
  • Monitoring software for real-time status display and control
  • Enhance AC/Solar charger to 190A

  • Lifespan

    20 Years

  • With Inverter

    Yes

  • 80% DOD

    ≥7000 Cycle

  • IP Rank

    IP54
