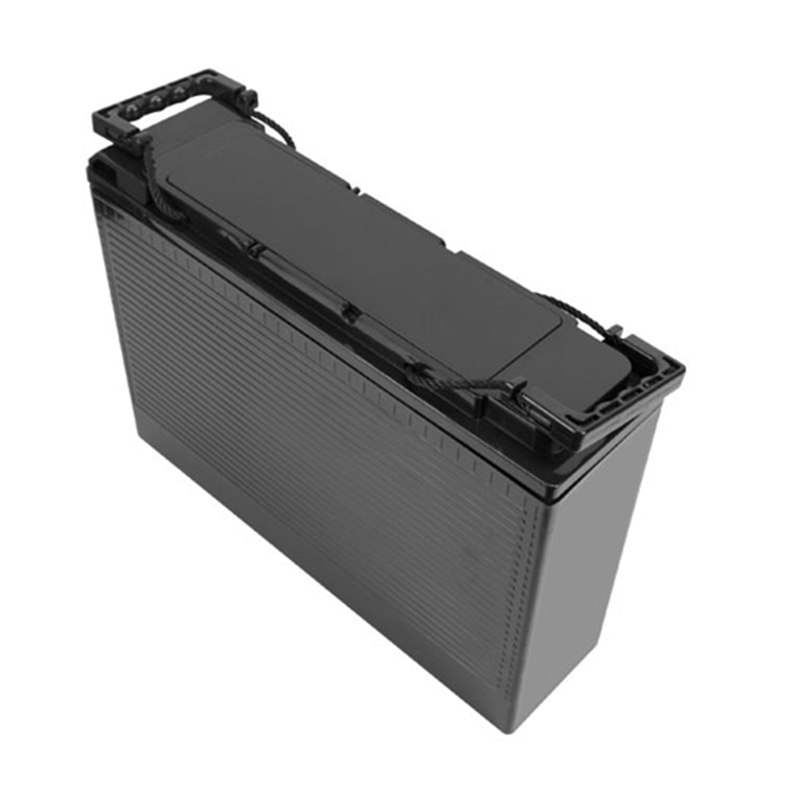

Front Terminal Lithium LiFePO4
Front Terminal Lithium LiFePO4
Front Terminal Lithium LiFePO4
Brand:
LINGRUI
Delivery Date:
5-10 days
Place of Origin:
CHINA
Transport To:
Whole World
Feature:
Lighter weight & small size & easy to carry with BMS multiple protection keep battery safely Built-in automatic protection for over-charge and over discharge and over current and over temperature.
Contact sales
Model No
Rated Voltage
12.8V
Rated Capacity
50AH
100AH
120AH
150AH
200AH
Length
275mm
400mm
555mm
Width
105mm
115mm
Height
225mm
290mm
240mm
Weight
6.5kg
12kg
13.5kg
18kg
24kg
Cycle Life
5000 Cycles
Model No
Rated Voltage
12.8V
Rated Capacity
50AH
100AH
120AH
150AH
200AH
Length
275mm
400mm
555mm
Width
105mm
115mm
Height
225mm
290mm
240mm
Weight
6.5kg
12kg
13.5kg
18kg
24kg
Cycle Life
5000 Cycles
LFP12-50
12.8V
50AH
275mm
105mm
225mm
6.5kg
5000 Cycles
LFP12-100
12.8V
100AH
400mm
115mm
290mm
12kg
5000 Cycles
LFP12-120
12.8V
120AH
555mm
115mm
240mm
13.5kg
5000 Cycles
LFP12-150
12.8V
150AH
555mm
115mm
240mm
18kg
5000 Cycles
LFP12-200
12.8V
200AH
555mm
115mm
240mm
24kg
5000 Cycles
Product Introduction
Using the technology of lifepo4 cell,superior safety,more than 5000 cycle times at100% DOD.
with BMS multiple protection easy installation and free maintenance.
The battery is highly use for telecom outdoor and communication base station and renewable energy systems and mountaion power generation and street light solar energy and RV power supply and other harsh environment applications.
Product Features
Lighter weight & small size & easy to carry
Built in Intelligent BMS Function.
with over charging & over discharging protect function.
Short-circuit protection function.
Temperature protection function.
Lighter weight about 40% ~50% of the weight of lead acid battery.
Wider work temperature range:-20℃~60℃
Support for Series application expansion (up to 51.2V) and 2 in parallel.
accept customized size and capacity and customied with LCD and bluetooth
Battery Application
Telecom outdoor applications
Communication base station
Street Light
Solar Energy
Renewable energy systems
Other harsh environment applications
Our Services
OEM and ODM service is acceptable.
All products will be tested 100% before shipment to ensure that the product does not have any quality problems.
We guarantee that warranty is 5 years after delivery.
we accept sample order to test and check quality.
